SINAMICS S120 MOTOR MODULE 30A D-Type (6SL3120-1TE23-0AD0): Product Overview

Quick Navigation

What is the SINAMICS S120 MOTOR MODULE 30A D-Type (6SL3120-1TE23-0AD0) Used For?

The Siemens 6SL3120-1TE23-0AD0 Motor Module is a high-performance component of the SINAMICS S120 drive system. Designed for advanced industrial applications, this module delivers precise control of speed, torque, and position, making it ideal for multi-axis systems and complex motion tasks.

Technical Specifications of SINAMICS S120 MOTOR MODULE 30A D-Type

Module Type: Motor Module
Input Voltage: 3AC 380-480 V
Output Current: 30 A
Rated Power: Suitable for large synchronous/asynchronous motors
Communication Interface: DRIVE-CLiQ
Cooling System: Forced air cooling
Compact Design: Booksize format for efficient integration in control cabinets

Key Functions of SINAMICS S120 MOTOR MODULE 30A D-Type

Precise Motion Control: Ensures accurate management of speed, torque, and position.
Dynamic Performance: Optimized for applications requiring rapid load changes.
Seamless Integration: Fully compatible with SINAMICS S120 systems via DRIVE-CLiQ.
Robust Protection: Equipped with overload and fault diagnostic capabilities.
Energy Efficiency: Supports efficient energy usage for high-demand systems.

Industries Using SINAMICS S120 MOTOR MODULE 30A D-Type

Automotive Manufacturing: Supporting robotic systems and assembly lines.
Textile Industry: Driving weaving and spinning machinery with precision.
Material Handling: Managing motion in cranes, hoists, and conveyor systems.
Machine Tools: Ensuring smooth operation of milling, drilling, and cutting machines.
Paper Production: Powering high-speed cutting and rewinding machines.
Energy Applications: Enabling precise control in renewable energy systems.

Required Equipment for SINAMICS S120 MOTOR MODULE 30A D-Type (6SL3120-1TE23-0AD0)

To fully utilize this module, the following components are required:

Control Unit: SINAMICS CU320-2 or equivalent for system management.
Line Module: Provides the necessary power supply for the motor module.
Compatible Motors: Synchronous or asynchronous motors for advanced applications.
DRIVE-CLiQ Interface Cables: Ensures seamless communication between system components.
Control Cabinet: Designed to accommodate the compact booksize format.

Manuals for SINAMICS S120 MOTOR MODULE 30A D-Type

For proper installation and configuration, refer to these Siemens resources:

SINAMICS S120 Manual <— Click here and read the manual

Example Configuration of SINAMICS S120 MOTOR MODULE 30A D-Type in TIA Portal

Follow these steps to configure SINAMICS S120 in TIA Portal:

Add the PLC Controller: Select a compatible controller, such as SIMATIC S7-1500.
Configure SINAMICS S120 in HW Config:
- Add the control unit (e.g., CU320-2) and power modules.
- Virtually connect the components according to the physical setup.
Create a Technological Object: Set up an “Axis” object in TIA Portal for axis management.
Program Motion Sequences: Use pre-configured PLCopen blocks for motion control.
Testing and Commissioning: Simulate and test the configuration in TIA Portal.

Application Example for SINAMICS S120 MOTOR MODULE 30A D-Type

Example Application – “Configuring a SINAMICS S120 with Startdrive”

SINAMICS S120 MOTOR MODULE 30A D-Type: Powerful and Precise Motion Control

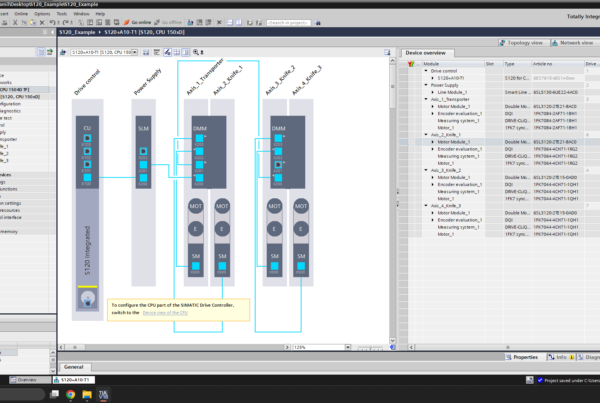

Below is a configuration diagram illustrating the integration of the SINAMICS S120 MOTOR MODULE with DRIVE-CLiQ and PROFINET systems:

The Siemens 6SL3120-1TE23-0AD0 Motor Module offers advanced motion control capabilities, ensuring precision, reliability, and seamless integration for demanding industrial environments.
